60V M8 Female Plastic Screw Connector Assembly 3 4 Pin 4A 90 Degree

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

60V M8 Female Plastic Screw Connector Assembly 3 4 Pin 4A 90 Degree

Brand Name : RIGOAL

Model Number : n8 assembly connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 10

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Type : circular connector

Application : Automotive

Gender : Male

Pins : 3 4 5 6 8pin

Coding : A/B/DCode

Rated Voltage : 60V for 3/4/5/6 pin, 30V for 8 pin

Rated Current : 4A for 3/4/5 pin, 2A for 6 pin, 1.5A for 8 pin

Insulation Resistance : ≥100 MΩ

Contact Resistance : <10 MΩ

Coupling Method : Threaded Connection

Contact Now

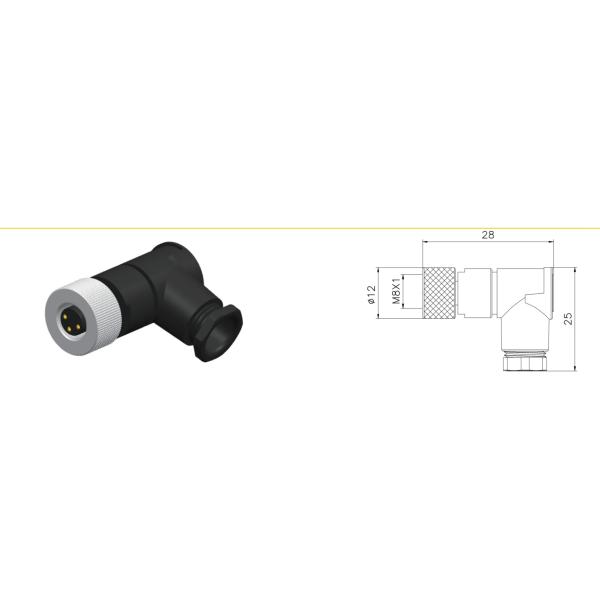

M8 Female 90degree Plastic Screw Assembly Waterproof ,A/B/D Coded 3pin 4pin 5pin 6pin 8pin Connector

60V M8 Female Plastic Screw Connector Assembly 3 4 Pin 4A 90 Degree60V M8 Female Plastic Screw Connector Assembly 3 4 Pin 4A 90 Degree60V M8 Female Plastic Screw Connector Assembly 3 4 Pin 4A 90 Degree

M8 connector provides a pratical economy and flexiable solution for mechanical engineering for small or special industrial field, and meets the requirments of rapid and seamless connectivity within a limited space.

They can reach excellent envoironmental protection at IP65~IP67 in locked condition, these products offer with 3~8pins contacts.

There are many kind of types, such as molding type and panel type, assembly type, splitter type, terminal type and so on.

Series M8
Coding A/B
Connection Type Panel Mount
Number of Contacts 3/4/5/6/8 Pin
Gender Male/Female
Orientation Straight/Angled
Termination Soldering/PCB
Rated Current 3A/1A
Operating Voltage 60V/30V
Temperature Range -25°C ~ + 80°C
IP Rating IP67

Product Tags:

M8 Female Plastic Screw Connector



60V Plastic Screw Connector



4A 90 Degree Circular Connector


Wholesale 60V M8 Female Plastic Screw Connector Assembly 3 4 Pin 4A 90 Degree from china suppliers
