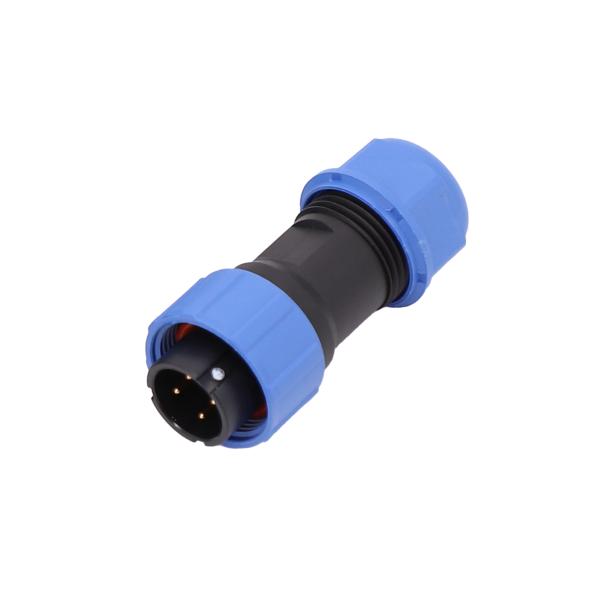

SP17 4 Pin Waterproof Connector WEIPU male Cable Plug IP68 circular In-line female
Description
* IP68 rating
* Current rating: 10A
* Voltage rating: 300V
* Accepted Max. Cable OD: 9 mm
* Field installable, soldering or screw connection
* UL, TUV, CQC, CE, RoHS approved
* High quality with 12 months waranty
* Pin range: 2-8
*Color : Black
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions
Jnicon Service and Warranty
1. Small MOQ can meet your business very well.
2. We treat you as our friends.
3. The products are directly from our factory. So it saves a lot secondary cost.
4. The production only will start after you confirm the samples and the products will do 100% inspection before shipping.
5. Please send us your design and other important information. OEM are always welcome.
| Electrical Parameters |
| Number of Poles | 4 |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
Main features
1. Advanced structure: IP67 self locking connector
2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable ,male and female without cable
5. Certifications: UL, TUV, CE,ROHS,CQC.
6. Connection method: push pull locking type
| Technical Parameters |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2
|
